The latest products
Enjoy the latest technology development and bring you more convenience
-

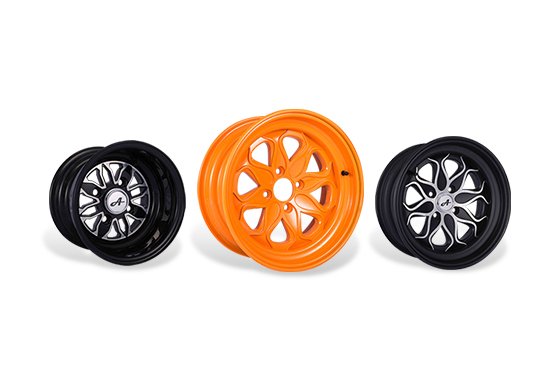

New steel-aluminum wheel Series1、Breaking through the material limitations of traditional aluminum and steel wheels;
2、Overcoming the difficult process of welding different materials of steel and aluminum;
3、Combines the advantages of steel wheel impact resistance and aluminum wheel appearance and good heat dissipation;
4、ulti-standard rims and disc can be freely matched;
5、Stylish appearance, good load, good impact resistance and safety. -

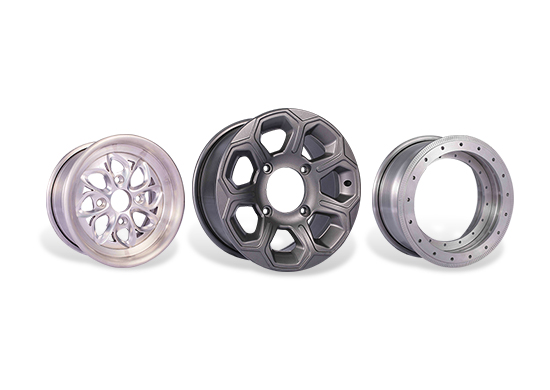

New aluminum wheel Series1、Rim aluminum plate rolling, spoke forging precision, combined friction welding;
2、The style is easy to change, the time limit for mold opening is cancelled, and the cost is lower;
3、Under the same load, it is 20% lighter than the traditional aluminum wheel, super lightweight;
4、Rim fully-curled technology with high impact resistance;
5、Stylish appearance, good heat dissipation, energy saving, safety and environmental protection. -

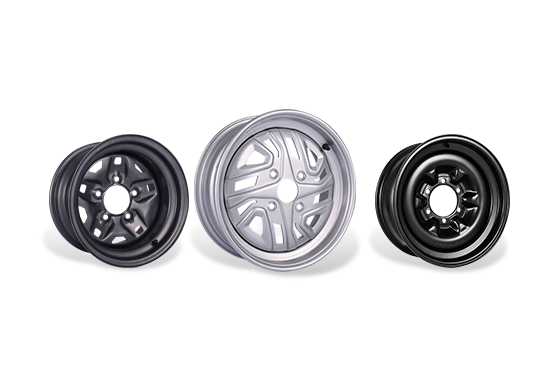

New steel wheel Series1、Use SAPH440 high-strength material to increase load and reduce weight;
2、Only design a set of modular molds to produce a variety of PCD sizes;
3、The design of the bow arch structure increases the resistance to twisting;
4、Full curred rim design of the rim rim to improve the anti-off-loop ability;
5、Customized design, fast sampling, affordable price.
Process Introduction
Have advanced and unique manufacturing processes, continuous research and development

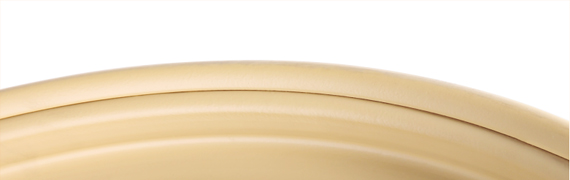

FULL ROLLED RIM PROFILEThe rim is designed as an "O" type crimping structure. This kind of structure allows the rim to be made of a thinner material, it can help to reduce the overall weight of the wheel,And the impact resistance of the wheel is multiplied, it is not easily deformed or torn when subjected to impact, preventing the tire from cracking or air leaking.The "O-shaped steel pipe principle" has better shock absorption effect and is suitable for vehicles with complex terrain and high-intensity work.
Rim rolling one-shot molding processAdopting the self-invented roll forming machine, reduces all 4 steps into 1 step to form a rim with more efficient and high quality, can control the radial run-out and lateral run-out within 0.6mm. And there is no damage, crack, fracture and obvious deformation after fatigue testing. No air leaking after impact testing.
Friction stir welding processAdopting the friction stir welding technology, promote the welded part forming forged stage by high-speed high-pressure rotation. Compared with the traditional fusion welding process, this process is more compact and mechanically desirable. The processed product has a strength of more than 50% and a weight loss of 20% compared with the traditional process, which can greatly reduce the energy consumption of the vehicle.
High level spraying processHave the production and processing capabilities of powder spraying, painting, electrophoresis. The powder spraying line introduces the advanced technology design concept of Germany, and adopts high-end equipment such as suspension chain transmission, automatic temperature control system, movable powder room and cyclone powder recycling system. The steel aluminum wheel pretreatment line adopts the neutral pickling ceramics process, which reduces the corrosion resistance of the aluminum plate and reduces the impact on the environment, and is more environmentally friendly and energy-saving than the original neutral pickling phosphating process.
